500 Professional Universal

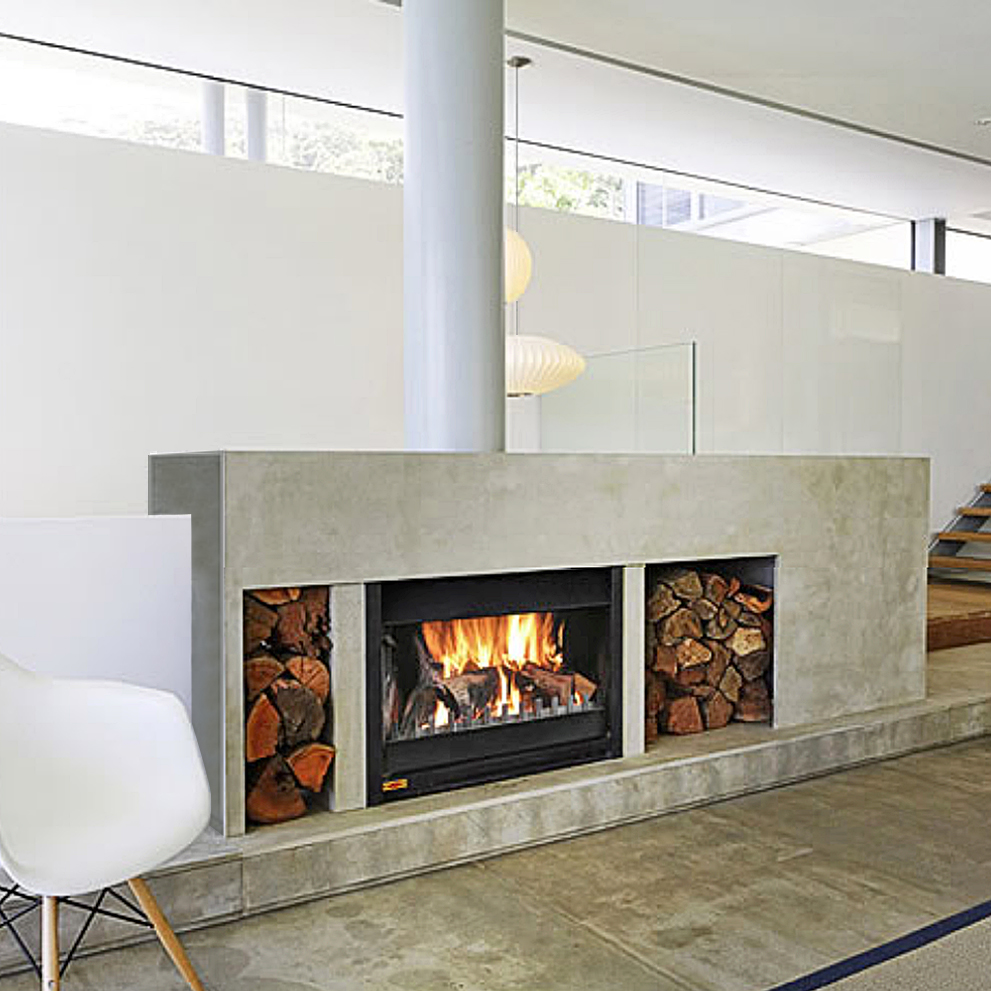

Individual creativity  – Use your imagination and different building materials to complement your particular taste and décor of your home.Use the universal fireplace as a room divider with an impressive, exposed flue.Grate options:• Basket grate and pan.• Log pan.• Standard or deluxe Gas grate.Model Measurement (mm) Flue Size (mm)Rectangular Flues Round FluesBody Width Depth Body Height Gather Height Depth WidthØ Length500** 549 355 630 252 200 200225 1200600 649 353 630 252 200 200225 1200700S 749 353 630 252 200 200225 1200700D** 749 403 680 252 200 200225 1200850 899 453 730 252 200 300275 12001050 1099 503 780 252 200 400325 12001200 1249 600 1000 252 350 500475 12001500** 1549 700 1000 500 350 500475 1200**Only Manufactured on special request. FOR TOTAL WIDTH INCLUDING FRAME, ADD 100MM TO WIDTHModel: Contractor Universal 500 600 700S 700D 850 1050 1200 1500Heating Capacity Wood (m 2 ) 52 56 68 72 80 100 112 128Heating Capacity Gas (m 2 ) 24 32 36 44 52 65 96 100SIZE OF WOOD GRATE 470×280 570×280 670×280 670×340 820×340 1020×340 1185×410 1485×410SIZE OF GAS GRATE 450×220 520×270 650×270 650×270 800×370 1045×370 1100×340 1400×340CONSUMPTION KG PER HOUR / LOW – HIGH 0.23 -0.38 0.25 – 0.44 0.33 -0.55 0.33 – 0.55 0.48 – 0.80 0.60 – 1.00 0.72 – 1.20 0.78 – 1.30
